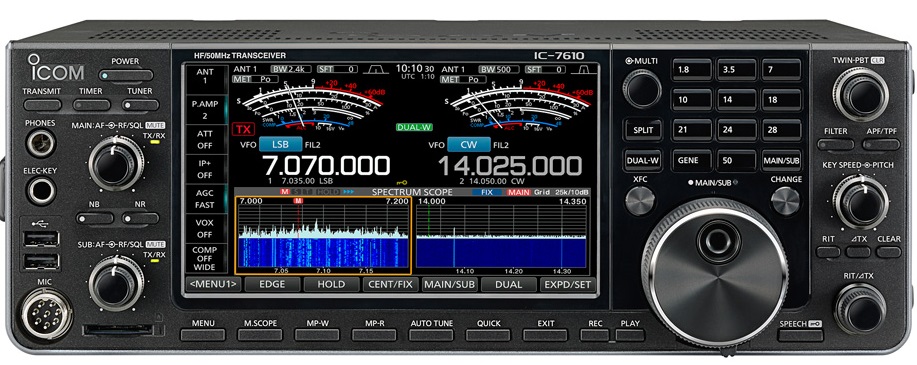

ICOM 7610
SPECIFICATIONS
GENERAL
Type: Amateur HF/VHF transceiver
Frequency range: TX: 10-160 m + WARC (also 137 KHz for EU version) / 6 m
RX: 0.03-60 MHz
Tuning steps: 1 / 100 Hz, 1 / 5 / 9 / 10 / 12.5 / 20 / 25 KHz
Frequency stability: ±0.5 ppm @ 0 to 50°C (32 to 122°F)
Mode: AM / FM / SSB / CW / RTTY / PSK
Channels / memory management: 99 regular
2 scan edge
Non-volatile EEPROM storage
Repeater shift/offset: HF: -100 KHz (Quick split default. Adjustable)
6 m: -500 KHz (Quick split default. Adjustable)
Power supply: 13.8 VDC ±15%
Current drain / power consumption: RX: 3 to 3.5 A
TX: Max 23 A
Antenna impedance / connector: 50 ohm (16.7-150 ohm with ATU) / Two SO-239
Dimensions (W*H*D): 340*118*277 mm (13.4*4.6*10.9")
Weight: 8.5 Kg (18.7 lb)
Other features: 7 inch touch screen display (800*400 pixels). True dual receivers.
Diversity reception. Transverter port. LAN port. USB ports.
Video monitor output. RTTY decoder. Electronic keyer. Auto ATU and more.RECEIVER SECTION
Receiver system: Direct RF sampling superheterodyne
IF: 12 KHz
Sensitivity:
General version
AM (10 dB S/N. Soft filter)
0.1-1.8 MHz: 6.3 uV (Preamp 1 on)
1.8-30 MHz: 2 uV (Preamp 1 on)
6 m: 1 uV (Preamp 2 on)
FM (12 dB SINAD. Soft filter)
28-29.7 MHz: 0.5 uV (Preamp 1 on)
6 m: 0.32 uV (Preamp 2 on)
SSB/CW (10 dB S/N. Soft filter)
1.8-30 MHz: 0.16 uV (Preamp 1 on)
6 m: 0.13 uV (Preamp 2 on)
European version
AM (12 dB SINAD. BW=4 KHz. 60% modulation. Soft filter)
1.8-3 MHz: 16 dBuV emf (Preamp 1 on)
3-30 MHz: 6 dBuV emf (Preamp 1 on)
6 m: 0 dBuV emf (Preamp 2 on)
FM (12 dB SINAD. BW=7 KHz. 60% modulation. Soft filter)
28-29.7 MHz: 0 dBuV emf (Preamp 1 on)
6 m: -6 dBuV emf (Preamp 2 on)
SSB (12 dB SINAD. BW=2.4 KHz. Soft filter)
1,8-3 MHz: 10 dBuV emf (Preamp 1 on)
3-30 MHz: 0 dBuV emf (Preamp 1 on)
6 m: -6 dBuV emf (Preamp 2 on)Selectivity: AM (Filter: Sharp, BW: 6 KHz)
6 KHz (-6 dB)
15 KHz (-60 dB)
FM (Filter: Sharp, BW: 15 KHz)
12 KHz (-6 dB)
20 KHz (-60 dB)
SSB (Filter: Sharp, BW: 2.4 KHz)
2.4 KHz (-6 dB)
3.6 KHz (-60 dB)
CW (Filter: Sharp, BW: 500 Hz)
500 Hz (-6 dB)
700 Hz (-60 dB)
RTTY (Filter: Sharp, BW: 500 Hz)
500 Hz (-6 dB)
700 Hz (-60 dB)
Image rejection: 70 dB (Except for ADC aliasing)
AF output power / speaker: 2 W at 10% distortion / 8 ohm
External speaker connector: 3.5 mm, 4-8 ohmTRANSMITTER SECTION
RF output power:
Pwr
AM: 1-25 W
FM: 1-100 W
SSB (PEP): 1-100 W
CW/RTTY: 1-100 W
PSK: 1-100 W
Modulation system: AM: Low power modulation
FM: Reactance modulation
SSB: PSN modulation
Max FM deviation (Factory set): Max ±5 KHz
Spurious emissions: HF: Better than -40 dB (out-of-band)
6 m: Better than -60 dB (out-of-band)
Microphone impedance / connector: 600 ohm / 8-pin (Metal locking ring connector)
Microphone input level: ? mVMISCELLANEOUS
Manufactured: Japan, 2017-20xx
Additional info: New price 2017 in Sweden: SEK 41995:-
New price 2018 in Sweden: SEK 39995:-
Related documents: User manual (16.5 MB)
Advanced manual (14.5 MB)
Modifications and fixes:
Reviews:
Options / Accessories: AH-2B
AH-4
AH-5NV
AH-710
AH-740
HM-219
IC-PW1
IC-PW1 Euro
MB-121
OPC-420
OPC-2321
PS-126
RC-28
RS-BA1
SM-30
SM-50
SP-23
SP-33
SP-34
Mobile antenna element. Length: 2.5 m (8.2 ft)
External antenna tuner. HF/6 m
NVIS kit for AH-740
Folded dipole antenna. 2-30 MHz.
Automatic tuning mobile antenna
Hand microphone
HF/6 m 1 KW linear amplifier
HF/6 m 1 KW linear amplifier. European version
Carrying handle
Control cable for AH-4
Control cable of AH-740
DC power supply. 13.8 VDC, 25 A
Remote encoder. Handy for use with RS-BA1
IP remote control software
Desk microphone
Desk microphone with up/down switches
External speaker with high/low cut. 2 W, 8 ohms
External speaker
External speaker with high/low cut. 3 W, 8 ohms
BASE / RIGPIX DATABASE
BASE RIGPIX DATABASE COM

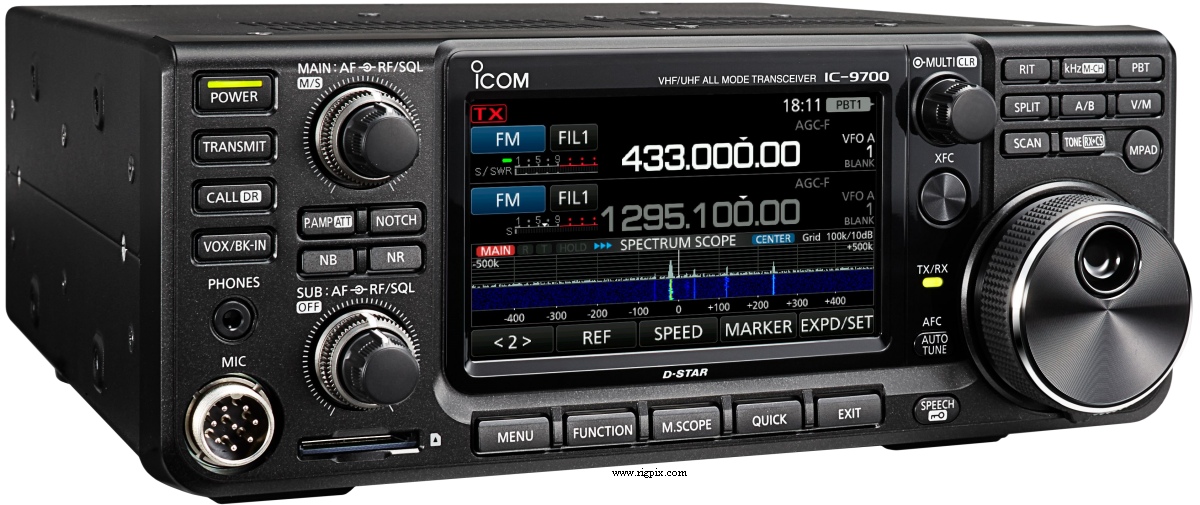

SPECIFICATIONS
GENERAL
Type: Amateur VHF/UHF transceiver
Frequency range: 2 m / 70 cm / 23 cm
Tuning steps: Down to 1 Hz
Frequency stability: ±0.5 ppm @ -10 to +60°C (14 to 140°F)
Mode: AM / FM / NFM / SSB / CW / RTTY and DV/DD (D-Star)
Channels / memory management: 99 regular per band with alpha tags
3 scan edge pairs per band
2 call per band
Non-volatile EEPROM storage
Repeater shift / offset: ±?
Power supply: 13.8 VDC ±15%
Current drain / power consumption: RX: 1.2 to 1.8 A
TX: Max 18 A
Antenna impedance / connector: 50 ohm / One SO-239 and two N-jack
Dimensions (W*H*D): 240*94*238 mm (9.45*3.7*9.37")
Weight: 4.7 Kg (10.4 lb)
Other features: SDR-technology. Spectrum scope & waterfall. CTCSS/PL. 4.3" TFT touch screen.
Satellite mode. SD-card. CI-V, LAN and USB-connectors. Voice synthesizer.
VOX. Twin RX.RECEIVER SECTION
Receiver system: Direct sampling (2 m / 70 cm)
Down conversion direct sampling (23 cm)
IF: 311-371 MHz
Sensitivity: AM: 1 uV (10 dB S/N. Filter=Soft. Preamp on)
FM: 0.18 uV (12 dB SINAD. Filter=Soft. Preamp on)
SSB/CW: 0.11 uV (10 dB S/N. Filter=Soft. Preamp on)
DV: 0.35 uV (1% BER. Filter=Soft. Preamp on)
DV: 1.59 uV (5% BER. Filter=Soft. Preamp on)
Selectivity: AM (BW=6 KHz)
6 KHz (-3 dB)
15 KHz (-60 dB)
FM (BW=15 KHz)
12 KHz (-6 dB)
20 KHz (-60 dB)
SSB (BW=2.4 KHz)
2.4 KHz (-3 dB)
3.6 KHz (-60 dB)
CW (BW=500 Hz)
500 Hz (-3 dB)
700 Hz (-60 dB)
RTTY (BW=500 Hz)
500 Hz (-3 dB)
700 Hz (-60 dB)
DV (12.5 KHz spacing)
-50 dB
DD (300 KHz spacing)
-40 dB
Image rejection: AM/FM/DV: 60 dB (2 m/70 cm), 50 dB (23 cm)
SSB/CW: 70 dB (2 m/70 cm), 50 dB (23 cm)
DD: 50 dB (23 cm)
AF output power / speaker: 2 W at 10% distortion / 8 ohm
External speaker connector: Two 3.5 mm, 4-8 ohmTRANSMITTER SECTION
RF output power:
2 m 70 cm 23 cm
AM: 0.12-25 W 0.12-18 W 0.05-2.5 W
FM/NFM: 0.5-100 W 0.5-75 W 0.1-10 W
SSB (PEP): 0.5-100 W 0.5-75 W 0.1-10 W
CW: 0.5-100 W 0.5-75 W 0.1-10 W
RTTY: 0.5-100 W 0.5-75 W 0.1-10 W
DV/DD: 0.5-100 W 0.5-75 W 0.1-10 W
Modulation system: AM: Digital low power
FM: Digital reactance
SSB: Digital PSN
DV: Digital GMSK
DD: Digital quadrature
Max FM deviation (Factory set): FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions: 2 m: Better than -63 dB
70 cm: Better than -62 dB
23 cm: Better than -53 dB
Microphone impedance / connector: 600 ohm / 8-pin (Metal locking ring connector)
Microphone input level: ? mVMISCELLANEOUS
Manufactured: Japan, 2019-202x
Additional info: New price 2019 in Sweden: SEK 20995:-
New price 2020 in Sweden: SEK 20995:-
Related documents: Basic user manual (15.2 MB)
Advanced manual (24.6 MB)
Service manual (10.3 MB)
CI-V reference (1.9 MB)
Picture TX function (1.6 MB)
MMG3H21NT1 23 cm pre-driver
PD85004 23 cm driver
AFT09MS031NR1 23 cm final
Modifications and fixes:
Reviews: QST: January 2020, page 42
Options / Accessories: CS-9700
CT-17
HM-219
MB-118
MB-123
OPC-2350LU
PS-126
RS-BA1 (V.2)
RS-MS1A
SM-30
SM-50
SP-33
SP-35
SP-38
SP-41 Programming software
CI-V level converter
Hand microphone with up/down buttons
Mobile mounting bracket
Carrying handle
PC/Android data cable
DC power supply. 13.8 VDC, 25 A
IP remote control software
Remote control application for Android
Compact electret desk microphone
Dynamic desktop microphone with up/down buttons and low cut
External speaker
External speaker
External matching high quality speaker. 7 W
External speaker with two input lines
